Photography of the metal structure, Storage,
Nodularity measuring equipment by the image analysis
SG-Analyzer
- Speculum image Storage of the metal structure
- Media output of Photography data
(USB Flash memory、SD Flash memory)
PC type - A [ Laboratory]

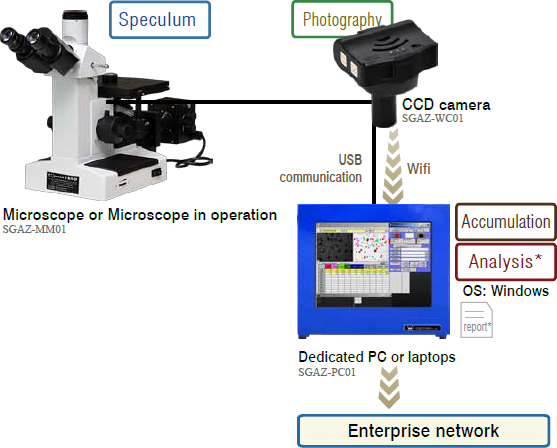

Constitution
*Analysis, Report, Enterprise network are optional
- The program can be customized to the user’s specification.
e.g.)
1. Output of report
2. Systematization in the company
PC type - B [ Site ]

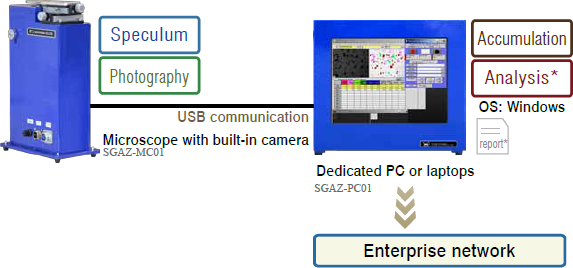

Constitution
*Analysis, Report, Enterprise network are optional
- Installed on the site
- The program can be customized to the user’s specification
e.g.)
1.Output of report
2.Systematization in the company
Tablet type [ Laboratory ]

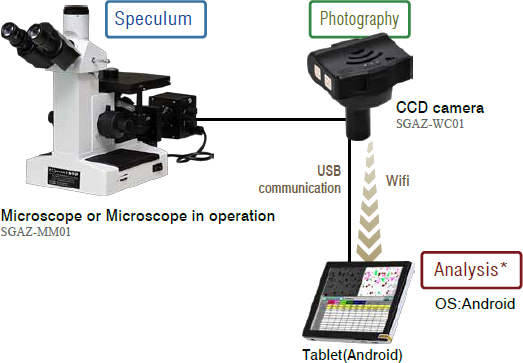

Constitution
- Photography function added to the microscope in operation
- Nodularity measurement(optional)
4. Built-in type (Dedicated Tablet) [ Laboratory ]
Constitution
- Space-saving
- Photography and the preservation of the speculum organization are possible with a monitor
- The radio data transmission is possible
- Nodularity measurement(optional)\
option
Analysis function
- Nodularity measurement (JIS standard, NIK method)
- Measurement of ferrite ratio and pearlite ratio
- Creation of the report (PC type)
- Systematization (PC type)
Specification
Dedicated PC
| Type | SGAZ-PC01 |
|---|---|
| Dimensions | W410 × H360 × D155 mm (Except for the Pedesta) |
| Weight | 12kg |
| monitor | 15 inche touch panel (supersonic type) |
| OS | Windows Embedded |
| Storage memory | 8GB |
| Interface | USB2.0 、RS232 、VGA |
| Power source | AC100-240V |
Built-in type
| Type |
SGAZ-SP01 |
|---|---|
| Dimensions | W220 × H210 × D62 mm |
| Weight | 約11kg |
| monitor | 8 inche touch panel |
| OS | Android |
| Interface | HDMI、SDX |
| Power source | Exclusive AC adapter (battery nothing) |
Microscope (Laboratory)
| Type | SGAZ-MM01 |
|---|---|
| Dimensions | W220 × H175 × D62 mm |
| weight | 10kg |
| Objective lens | ×10、×20、×40、×100 |
| light source | Halogen（dimmer） |
| Power source | AC100-240V |
Microscope (Site)
| Type | SGAZ-MC01 |
|---|---|
| Dimensions | W200 × H305 × D100 mm |
| weight | About 4kg |
| Total magnification | ×100 |
| light source | LED（dimmer） |
| Power source | AC100-240V |
CCD camera
| Type | SGAZ-WC01 |
|---|---|
| Dimensions | W90 × H80 × D65 mm |
| weight | 230g |
| Connection method | Wireless: Wifi Wired: USB |
| Power source | Charge type |
