Charge-type Wireless thermometer
TMW-2000

  • Automatic peak hold
  • Measurement time: 5 second
  • Main body charge type
  • Automatic power off
  • Recharge once a week
@

Feature

Handy type thermometer

Small and light handy type thermometer. Easy measurement of molten metal temperature.

Peak hold function

Automatic peak hold function keeps maximum temperature during the measurement .

Power off function

Automatic power-off function (1 minite).

Batteries

Fast charge(2 hour).

Indicator

Indicator is large red LED.

Measurement time

Available for one week on a full charge (theoretical value).

Thermocouple switching is possible

Thermocouple type: B, S, R, K (standard: R) .

Wireless

The specific small electricity

The specific small electricity that is a license-free

Line-of-sight distance

20m (There is a condition difference)

Data output / Data linkage

Device

Wireless large display
TM-IW		 Printer
TM-PR		 Wireless receiver
TM-RW

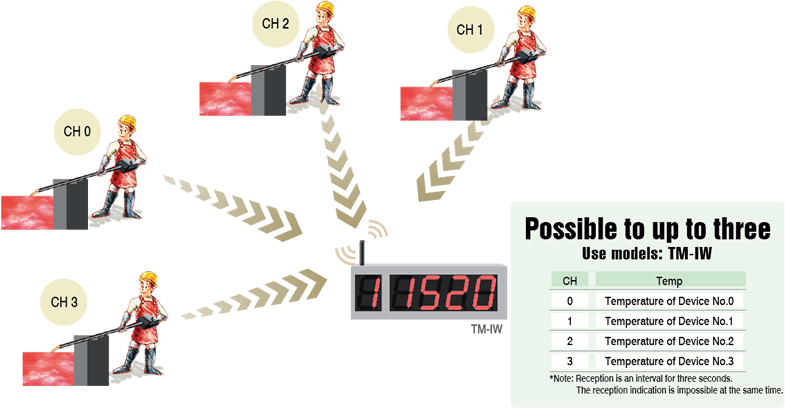

System example

Channel type

Multifrequency type

Multi-frequency type “-M”

Specification [ Type : TMW-2000*1 ]

Dimensions W110 × H180 × D200 mm
Weight About 1kg
Thermo sensor Type-R thermocouple@i JIS C 1602: 2015 )
Measurement range 50 ~ 1768Ž
Accuracy ±(0.3“ of rdg{1Ž)
Resolution 1Ž(1°‚e)
Reference contact point compensation ±1Ž(0`100Ž) / ±1°‚e(0`212°‚e)
Radio frequency Specific small power ( line-of-sight distance: 20m)
  • Standard: 429MHz(Fixed)
  • M-Type: 429.25, 429.35, 429.45, 429.65MHz (Select)
Indicator Red LED character size: 14.2 ×10 mm
  • sensor open or upper limit : Er-S
  • batteries are low : Er-P
Peak hold function Holds the maximum data of increasing temperature.
Power off function Switches off the power when increasing temperature is not
Batteries Nickel hydrogen cell
Recharging power source AC100 ~ 240V
Accessories Dedicated AC adapterF1set

Display

Type TM-IW *1
Data output TM-IW-DO
Dimensions W500 × H150 × D70mm
Weight About 3kg
Reception frequency
 429MHz
character Red LED / character size: 110 × 70 mm
Power source AC100-240V

Printer

Type TM-PR *1
Dimensions W150 × H150 × D250 mm
Weight About 2kg
Printing method Serial dot thermal printer
Power source Dedicated adapter

Receiver

Type TM-RW *1
Dimensions
  • Body*2FW130 × H60 × D220 mm
  • Antennas*3FW65 × H350 × D85 mm
Weight –ρ0.6kg
Reception frequency 429MHz
Interface RS232
Power source AC100-240V
*1 Multi-frequency type “-M”
*2 Including rear connector
*3 Including Antennas
*4 Observe the usage carefully read the notes on use , please use it correctly .
